Tian Woo / Manufacturing & Quality生產與品質
One plant, from cleaning line to coated part.由清洗到出貨，全部喺同一間廠完成。
We moved from Shenzhen to a purpose-built site in Dongguan in September 2020, with more automation, cleaner workshops and room to grow.2020 年 9 月由深圳搬到東莞自建廠房，自動化程度更高、車間更潔淨，亦預留咗擴充空間。
The plant廠房
Built for PVD.為 PVD 而建。
- Site佔地
- 20,000 m² industrial park20,000 平方米工業園
- Floor area廠房面積
- 50,000 m², 14-storey production building50,000 平方米，14 層生產大樓
- PVD chambersPVD 爐
- 132+, with 30 more planned132 台以上，計劃再加 30 台
- Cleaning清洗
- 6 automated lines6 條自動清洗線
- Cleanrooms無塵車間
- Class 10,000 on the 2nd and 3rd floors2 樓及 3 樓萬級無塵車間
- People人手
- 900 staff900 名員工
Process工序
How a part moves through the plant.一件貨喺廠入面點樣行。
-
01

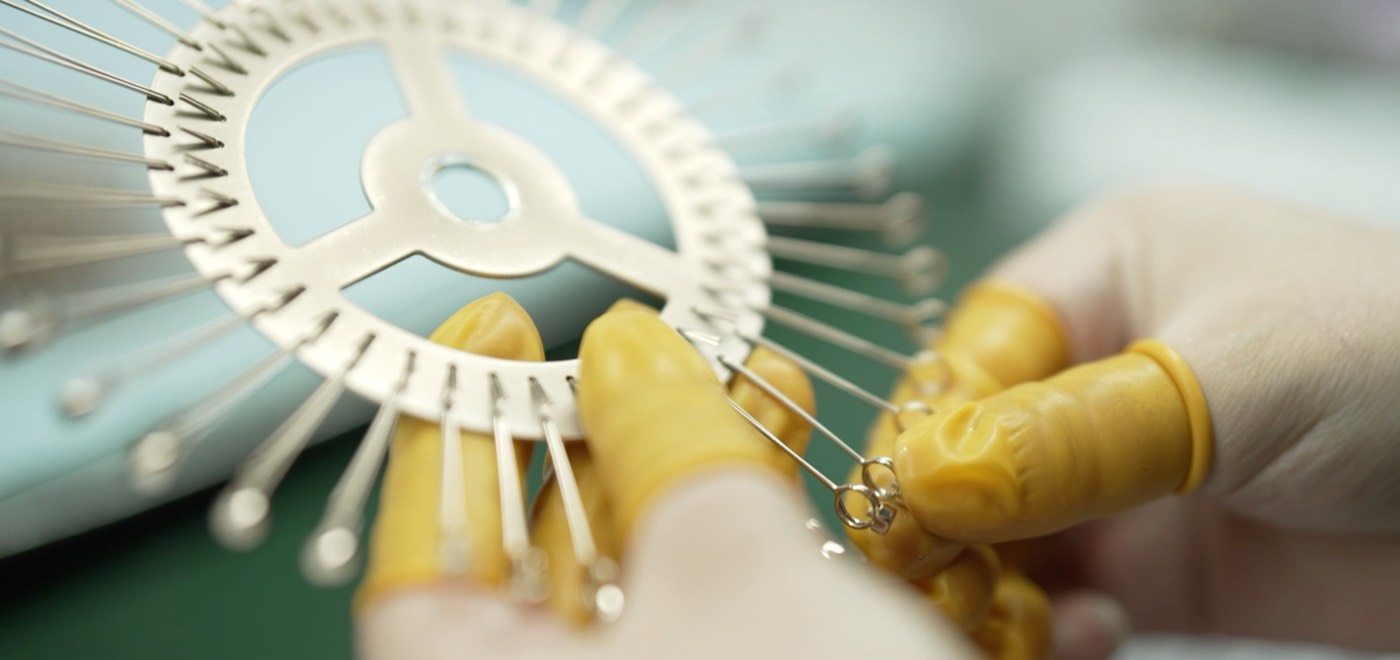

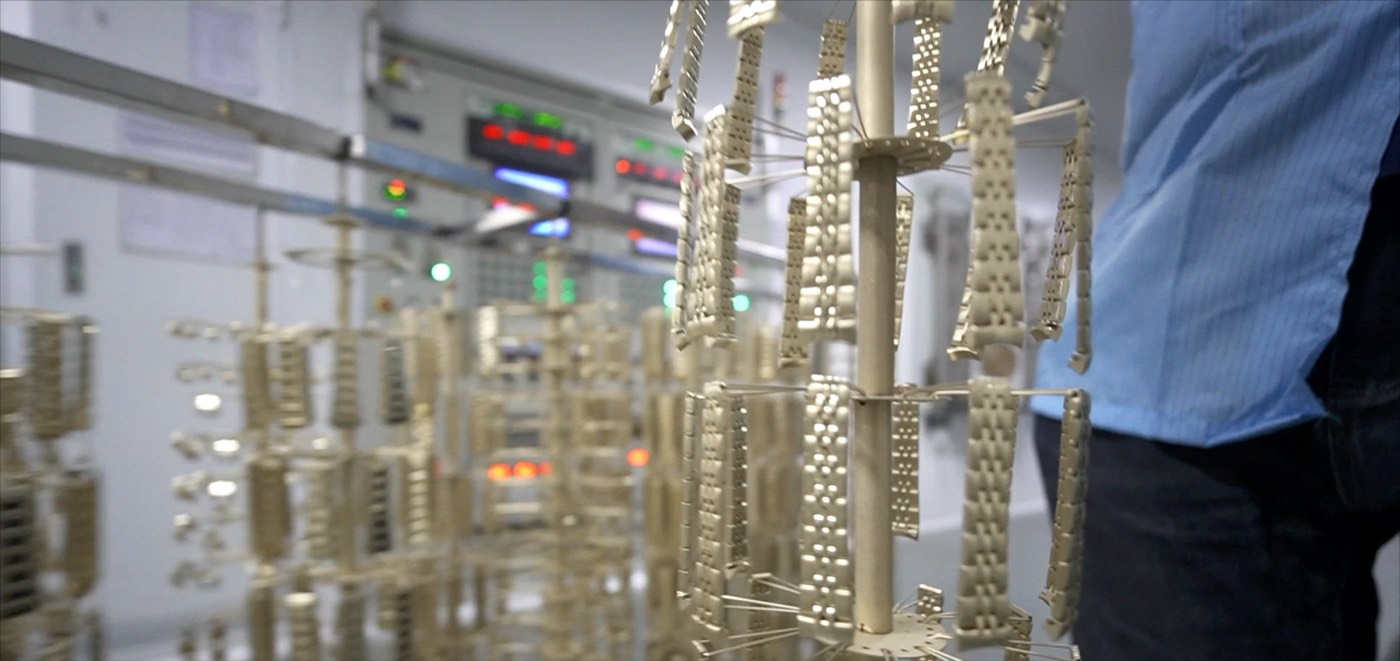

Incoming check and racking來貨點數及掛架
Parts are counted, inspected and mounted on fixtures by hand.來貨點數、檢查，再人手逐件掛上治具。
-
02

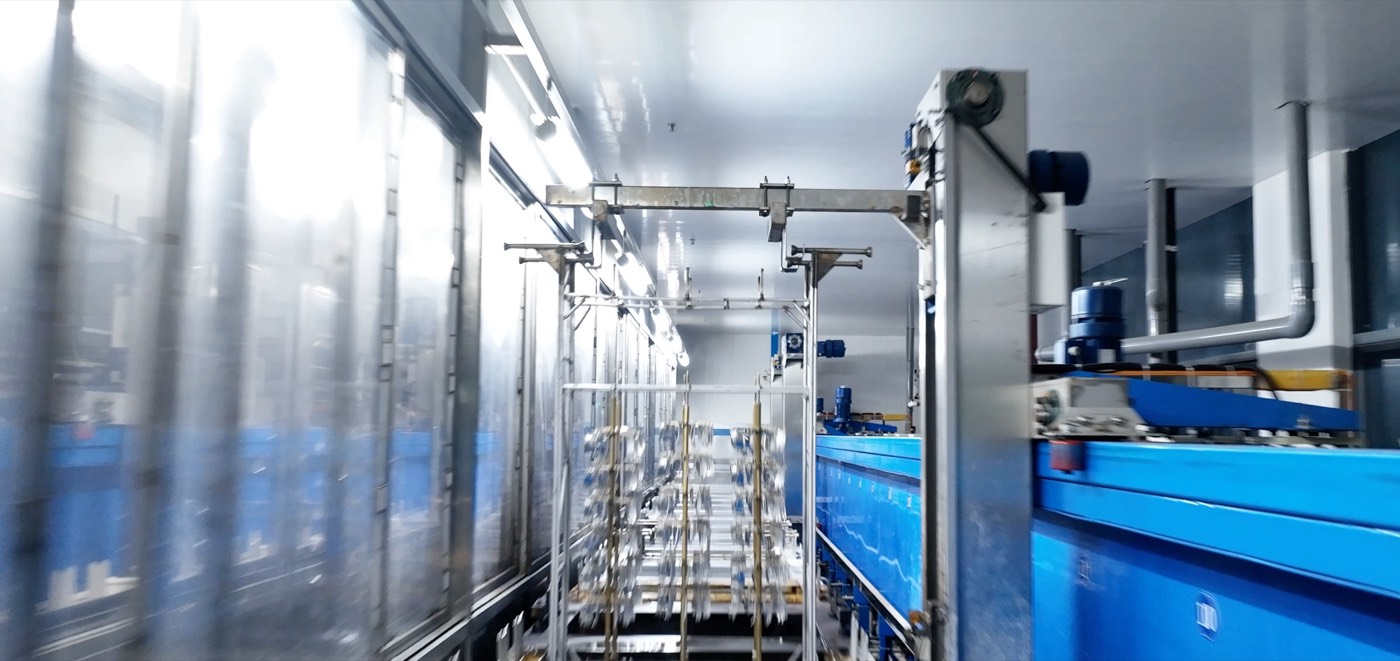

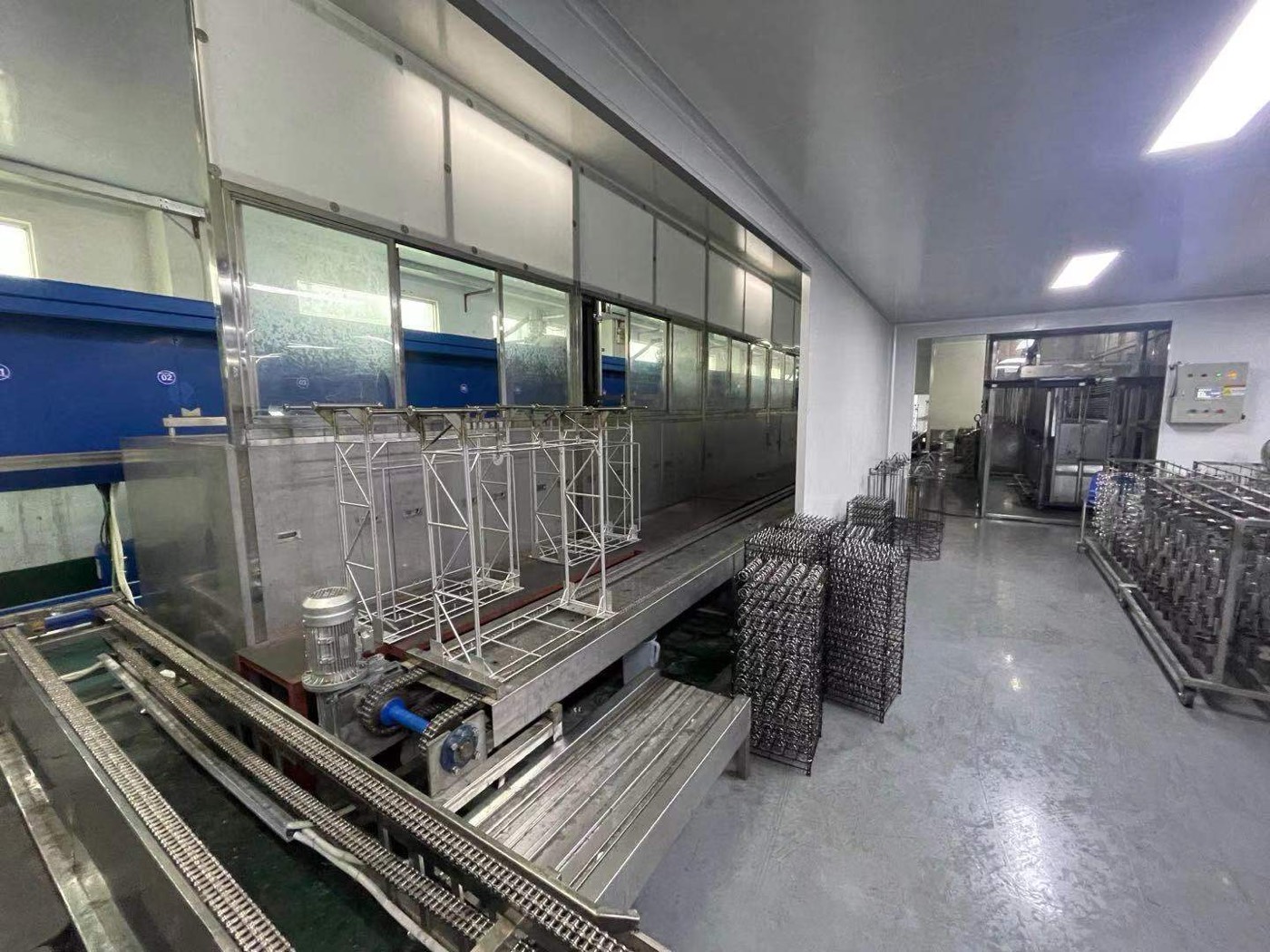

Automated cleaning全自動清洗
A 4.5-hour programmed cycle on one of six lines, so every batch is cleaned the same way.六條清洗線之一，4.5 小時程式化清洗，每批貨洗法一致。
-
03

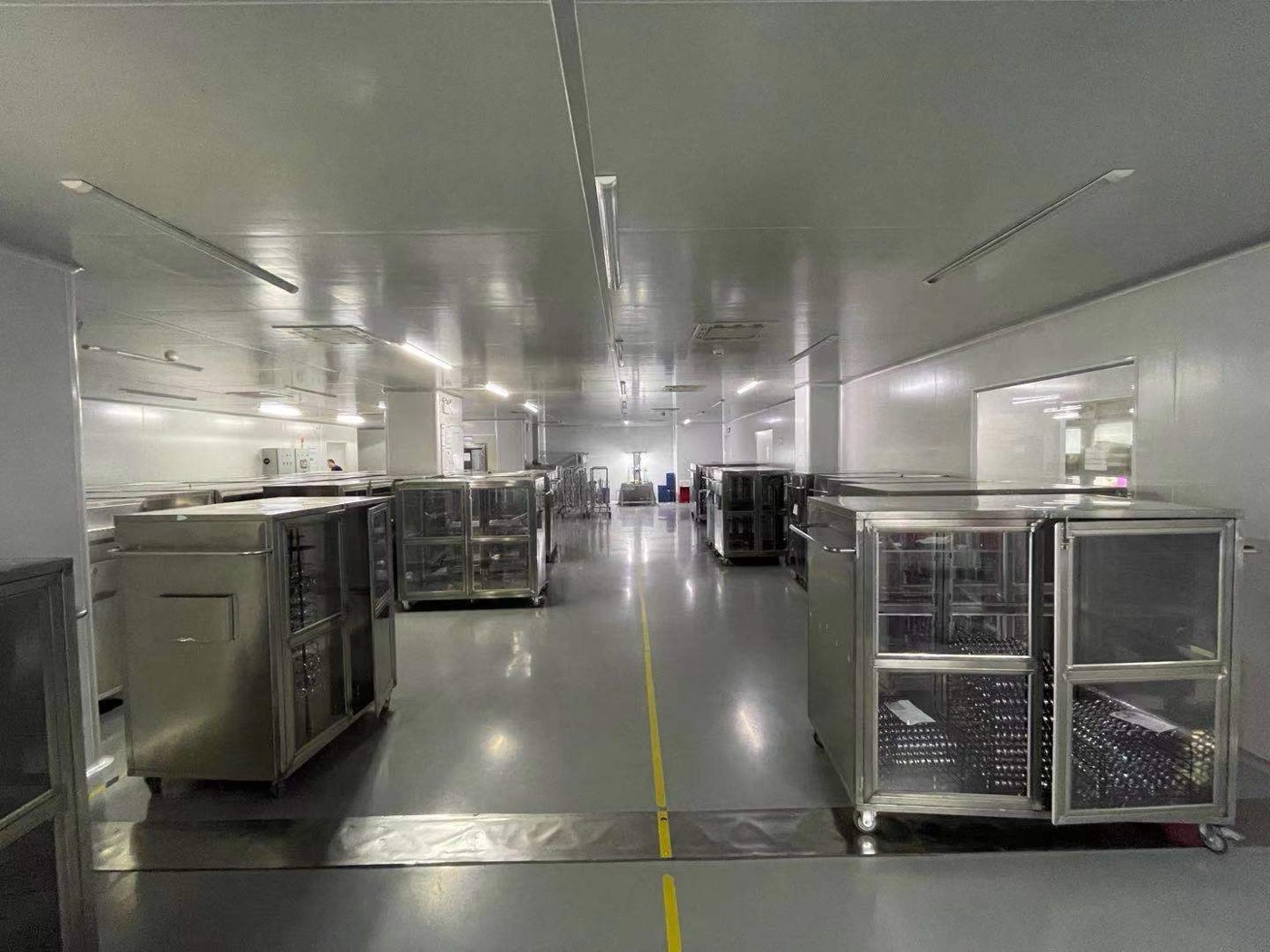

Class 10,000 cleanroom萬級無塵車間

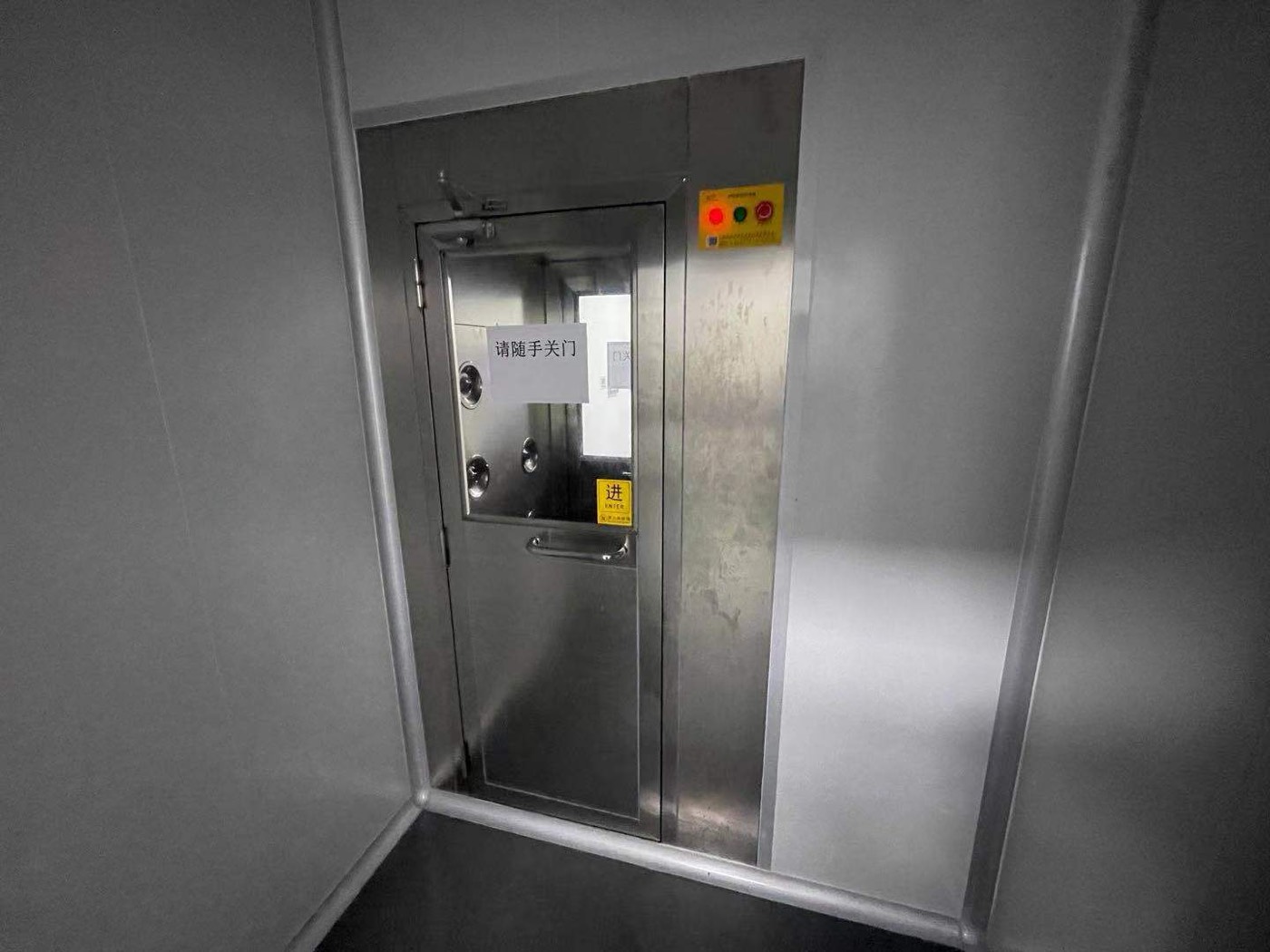

Each cleaning line exits straight into a dust-free workshop, with no exposure in between.清洗線出口直接連接無塵車間，中途唔會沾塵。
-
04

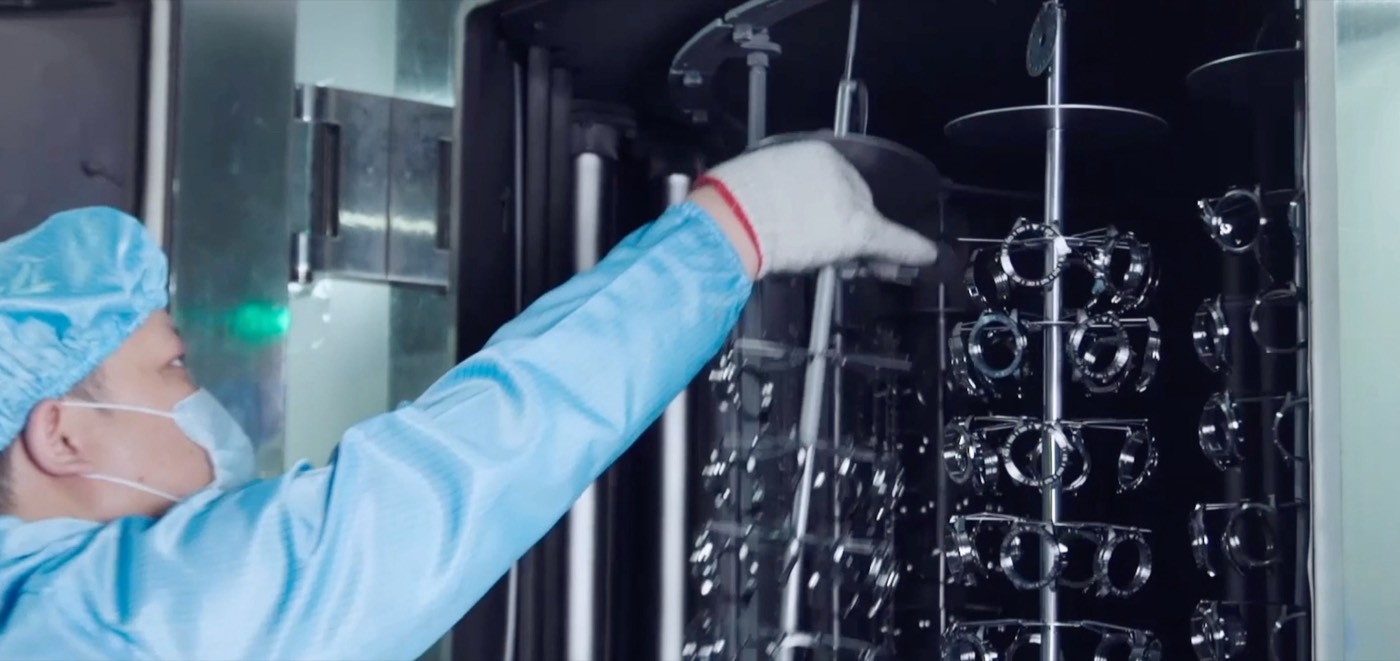

PVD coatingPVD 真空鍍膜
Automated programmes on 132+ vacuum chambers keep colour stable from batch to batch.132 台以上真空爐，以自動程式控制，批次之間顏色穩定。
-
05

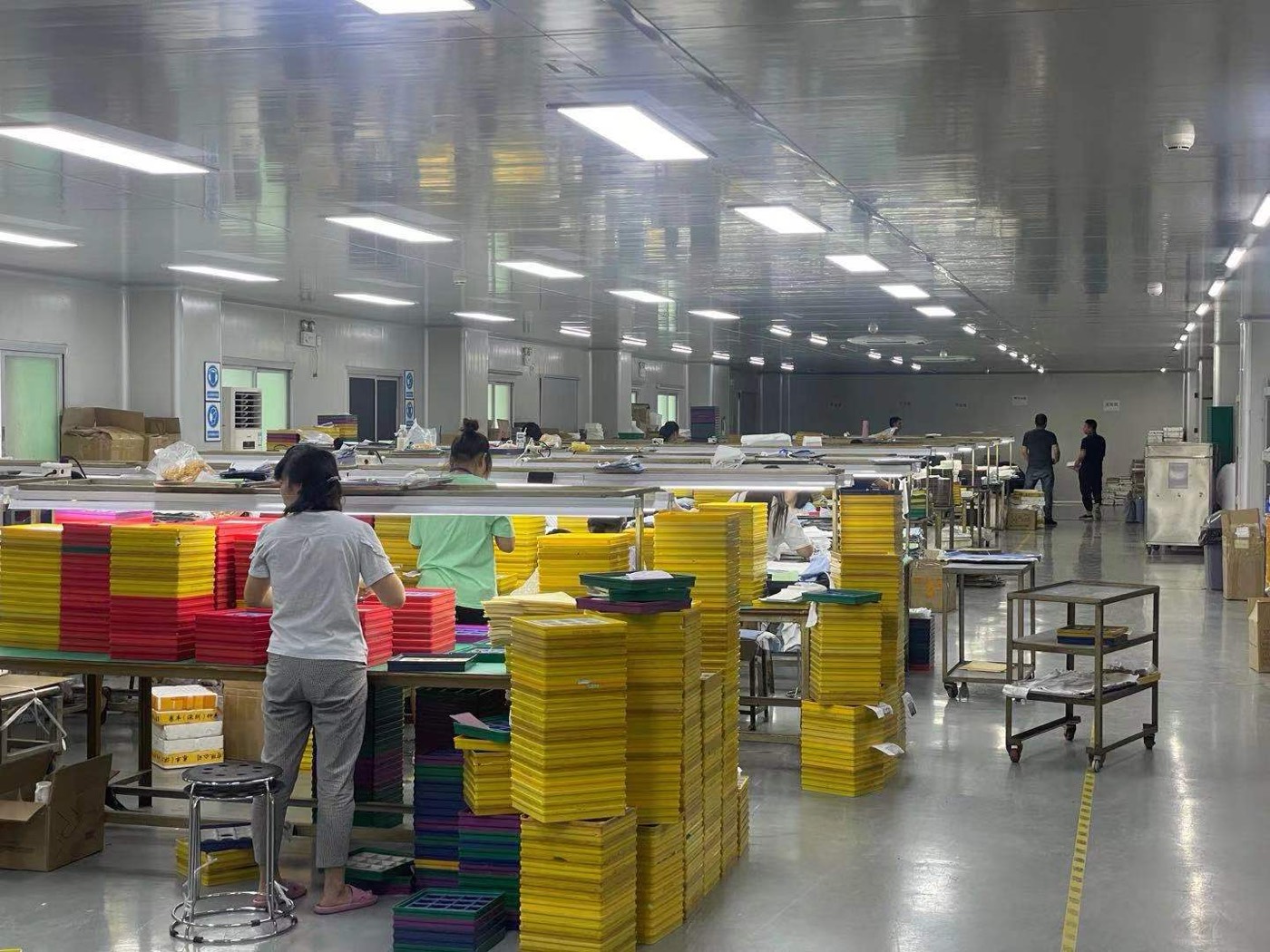

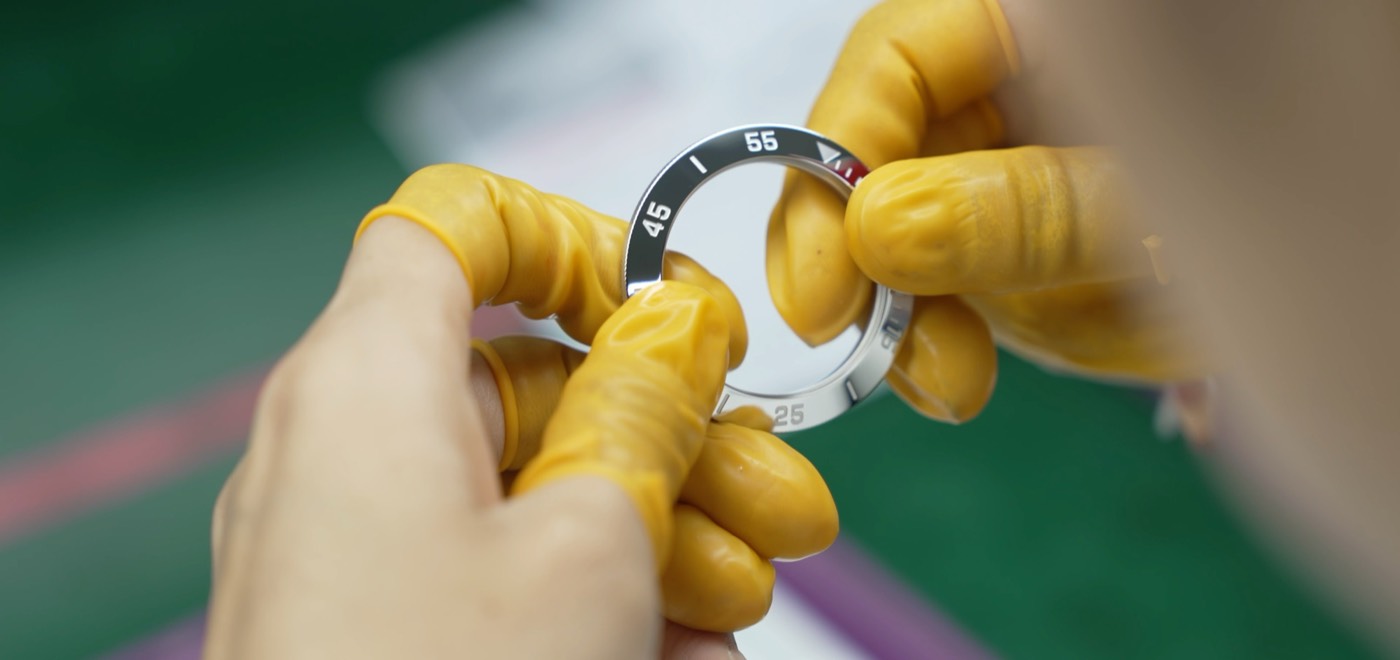

Inspection and colour check外觀檢查及對色
Every lot is checked by eye and against the approved colour card, and measured for Lab values.每批貨都做外觀檢查，對照批核色差卡，並量度 Lab 值。
-
06

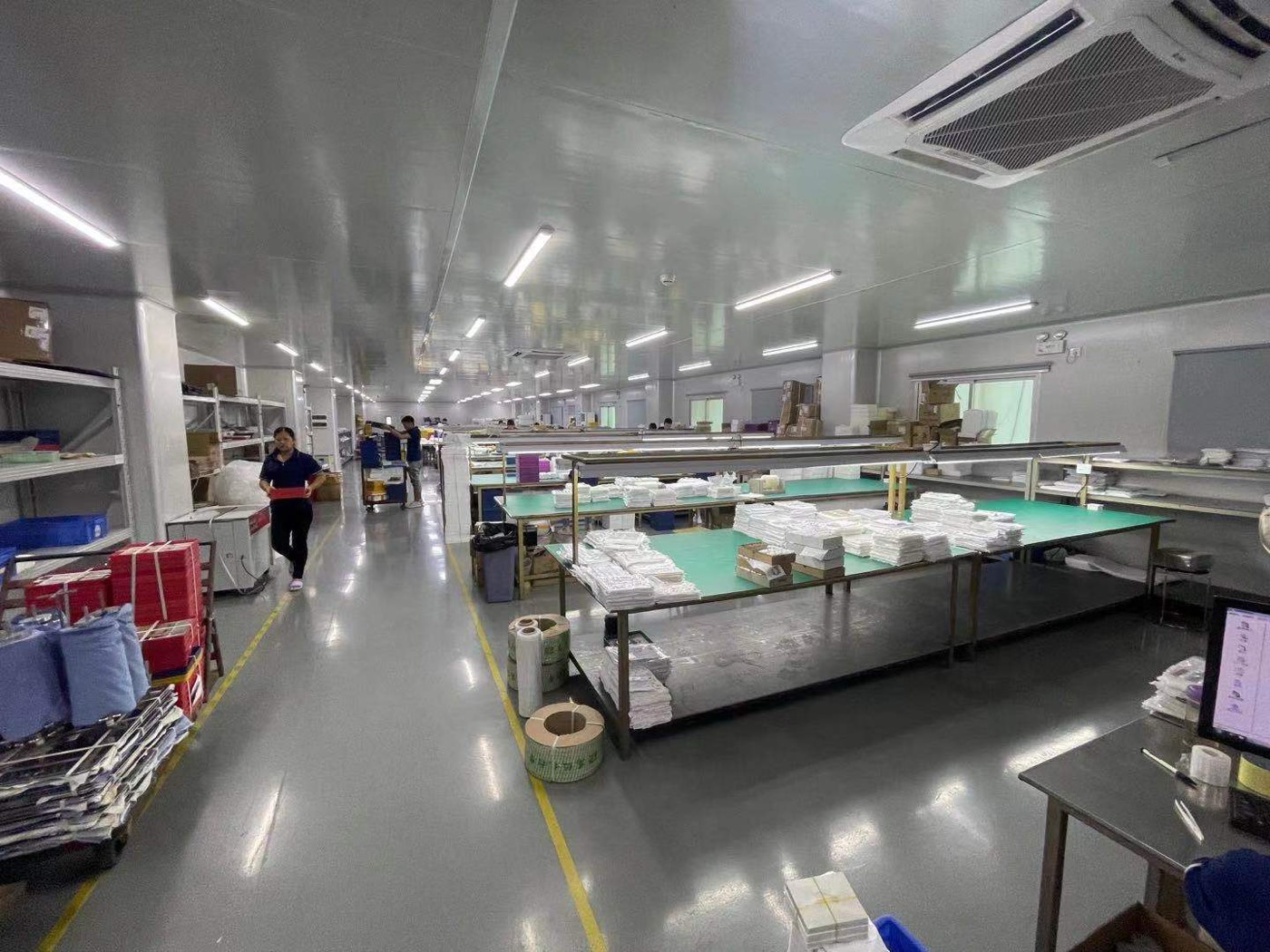

Packing and dispatch包裝出貨
Full plating ships in 3–5 days, two-tone in 7–10 days.全電 3–5 天出貨，間電 7–10 天。
Facilities設施
Inside the plant.廠內實況。
Quality品質
Colour you can sign off on.顏色有標準，品質有數據。
Every colour has an approved card with upper and lower limits, and every lot is measured against it. Then we test the coating to the standards your QA team uses.每隻顏色都有批核色差卡，訂明上下限，每批貨都對照量度。之後再按客人品質部採用嘅標準測試鍍層。

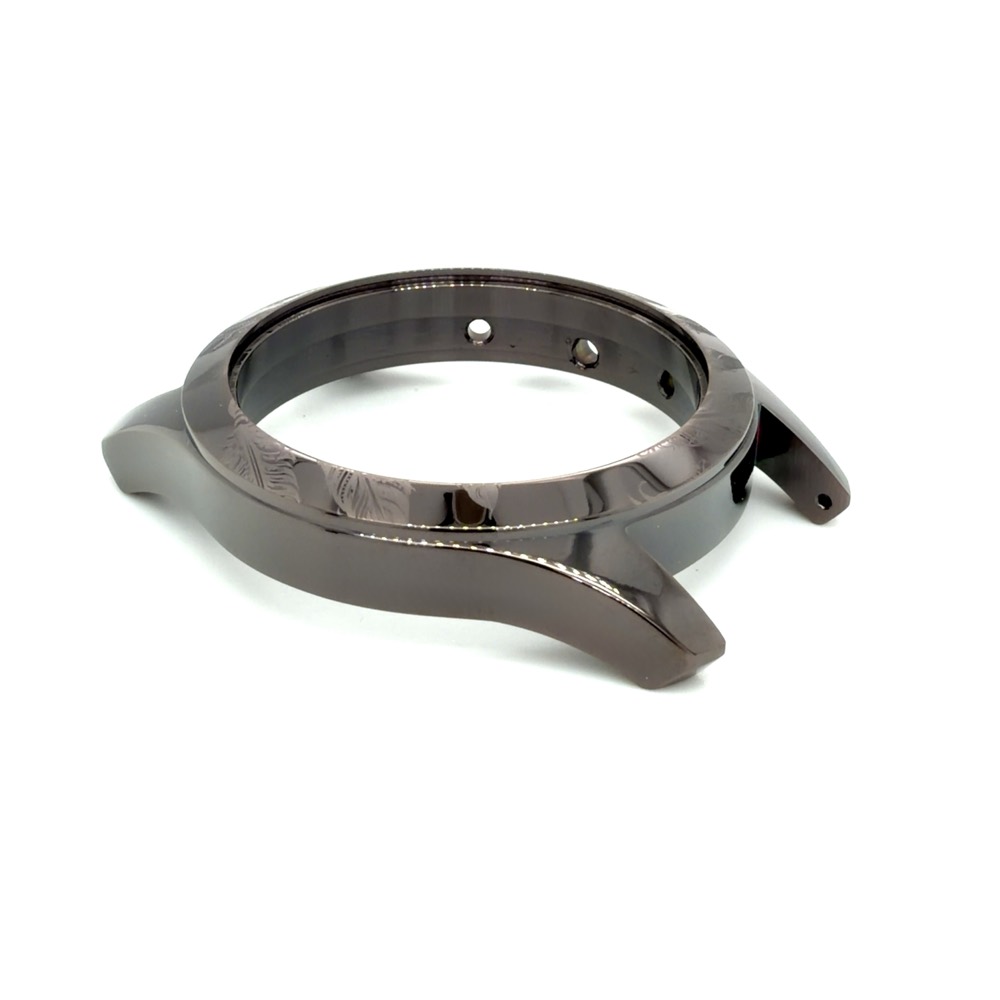

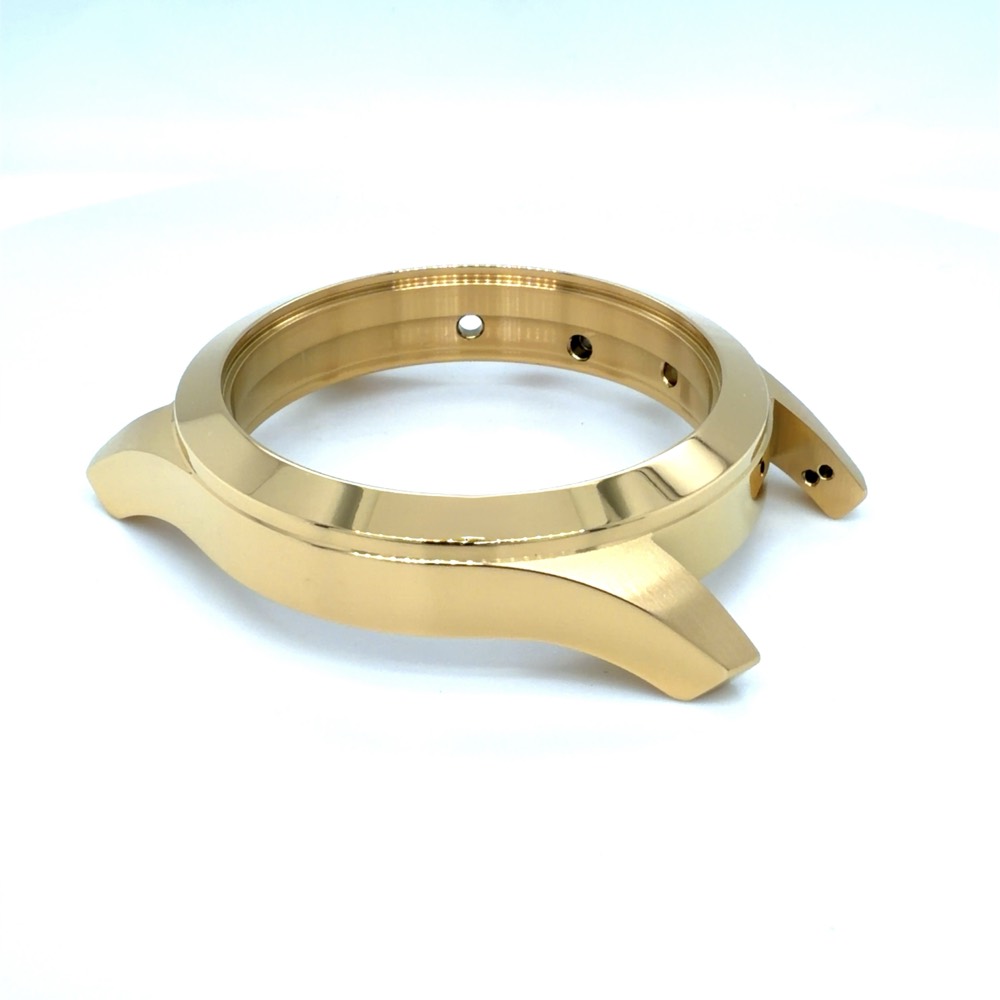

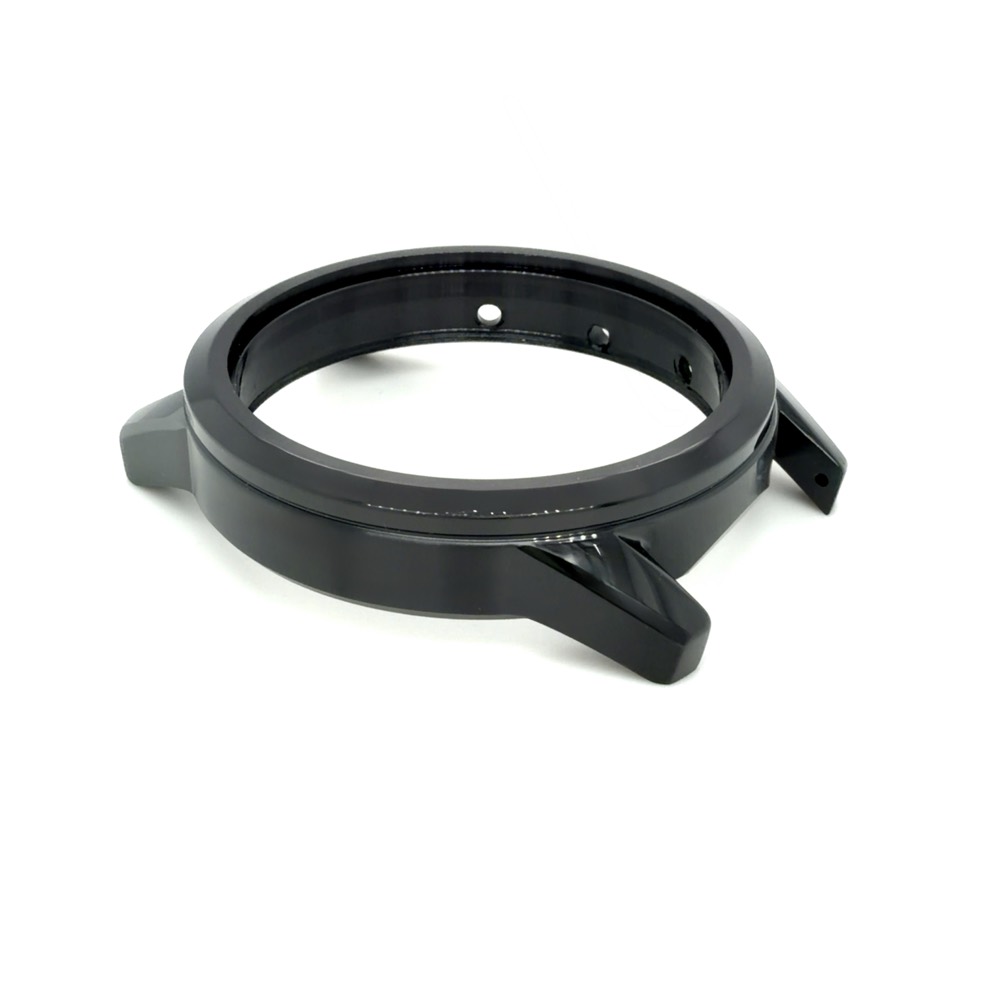

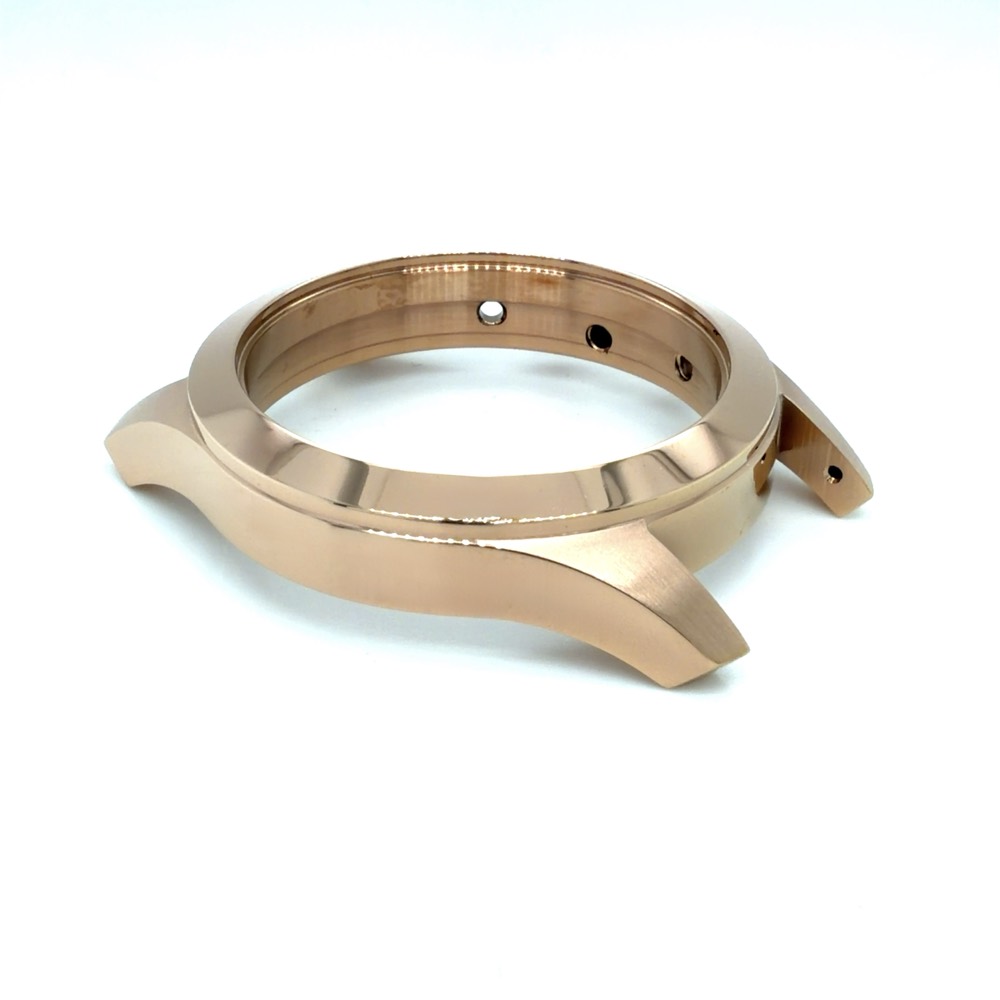

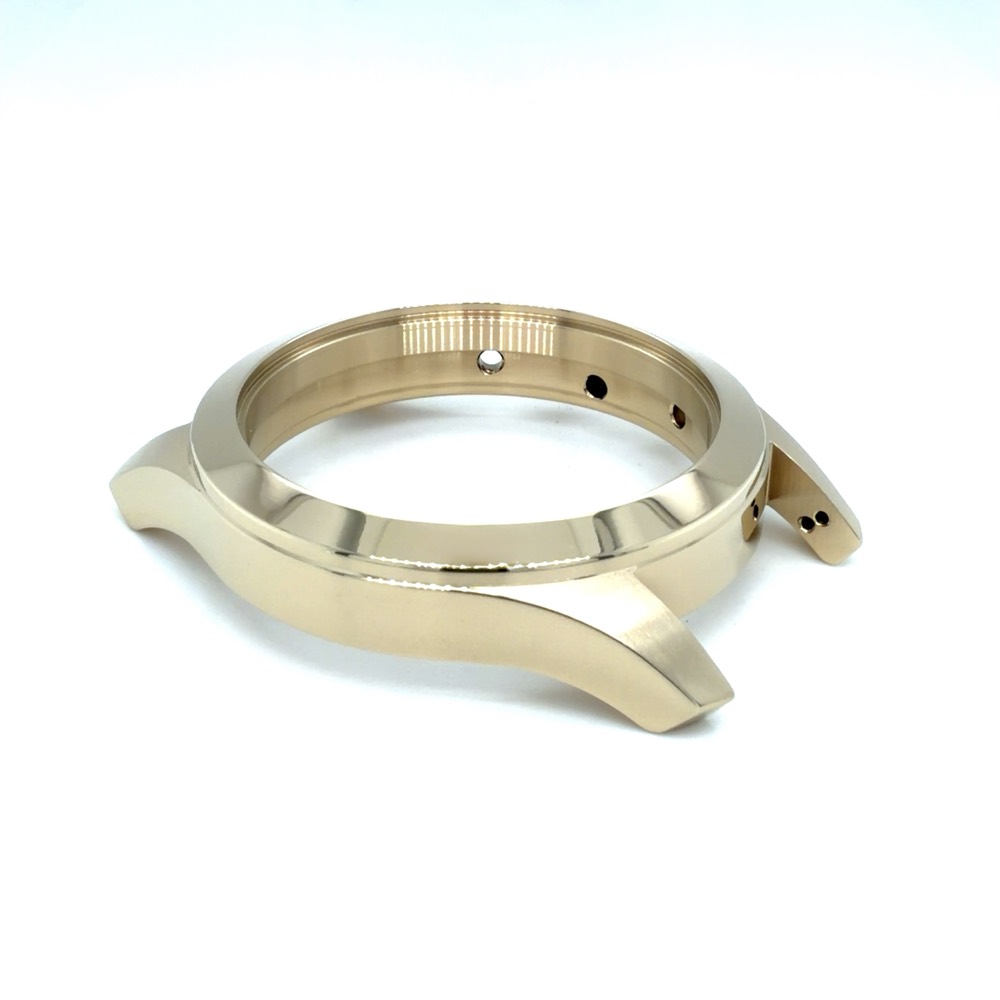

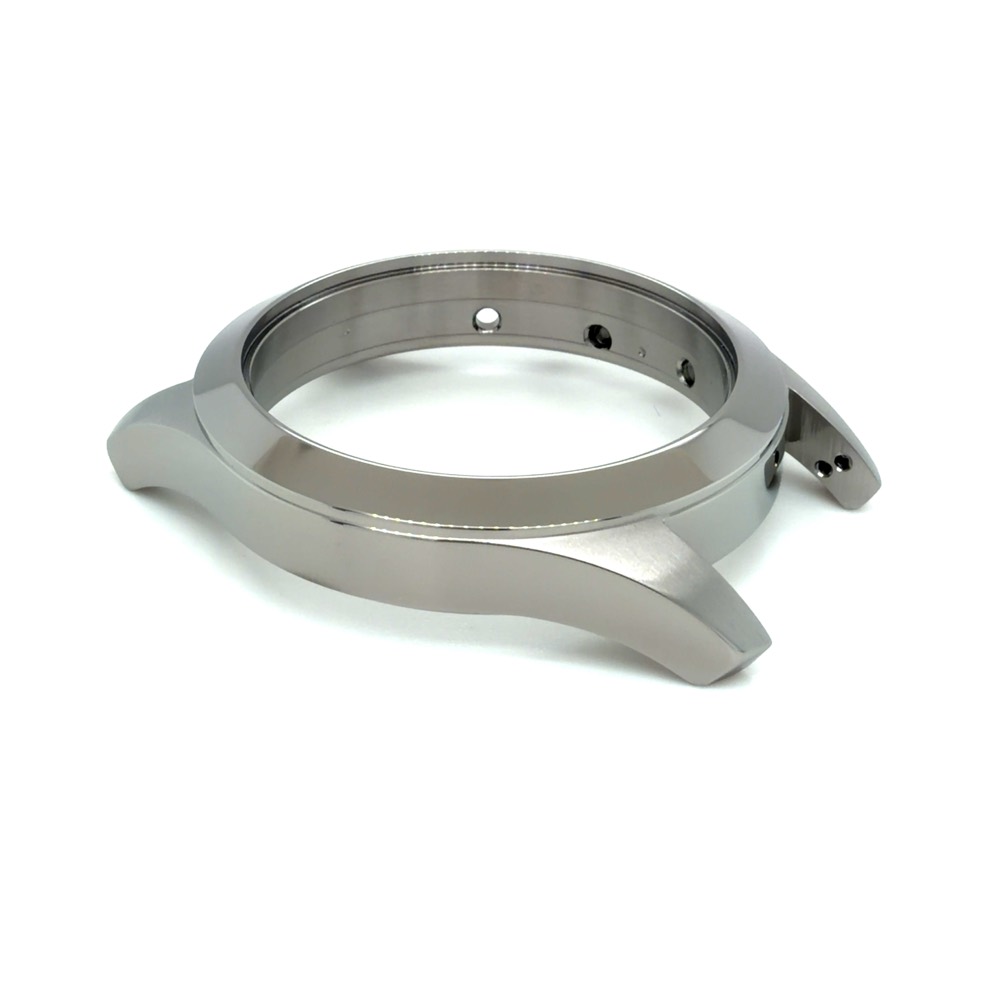

The same case in six standard colours. Each colour is held to its own approved card, so the hundredth batch matches the first.同一款錶殼，六隻標準色。每隻顏色都按各自批核嘅色差卡生產，第一百批同第一批一樣。
- Artificial sweat人工汗液測試
- ISO 3160-2
- Abrasion耐磨測試
- ISO 3160-3
- Corrosion耐腐蝕
- Salt spray chamber鹽霧測試
- Adhesion附著力
- Tape test膠紙測試
- Coating thickness鍍層厚度
- Fischer X-rayFischer X 光測厚儀
- Colour顏色
- Lab values and ΔE against the approved card, and against parts already plated for the same modelLab 值及 ΔE，對照批核色差卡，以及同型號已電鍍部件
Laboratory實驗室
Tested in-house before it ships.出貨之前，自己先測試。

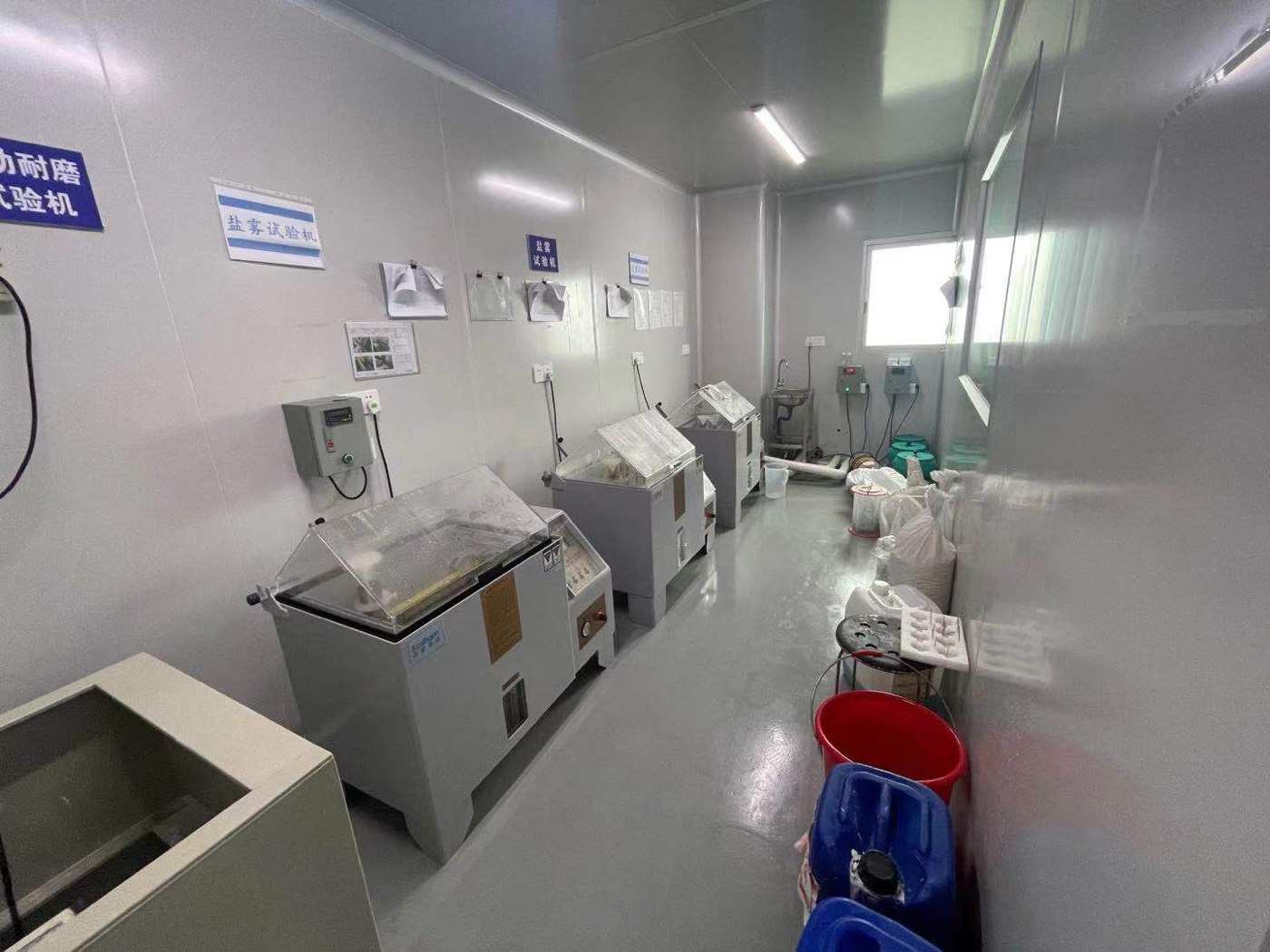

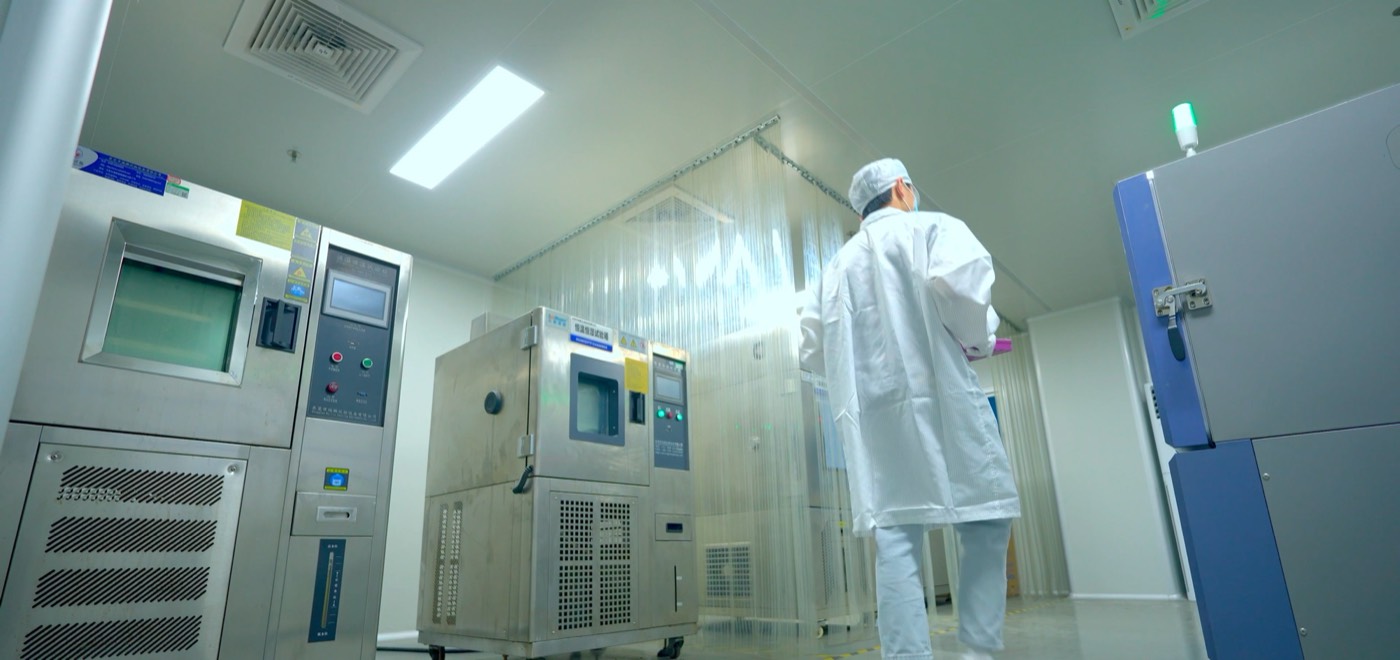

Environmental testing環境測試
Salt spray and climate chambers.鹽霧同恆溫恆濕測試箱。
Abrasion testing耐磨測試
Wear resistance tested to ISO 3160-3.按 ISO 3160-3 測試耐磨性能。

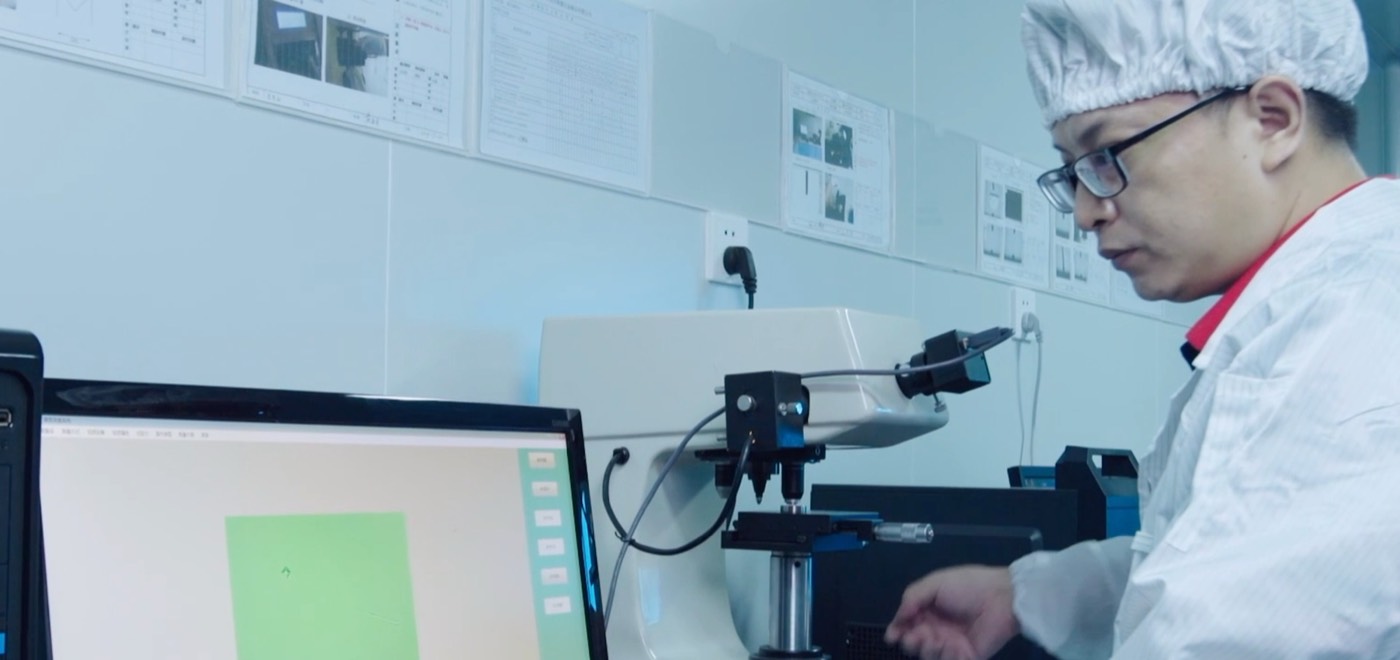

Colour measurement顏色量度
Lab values recorded for every lot.每批貨都記錄 Lab 值。
